PaintLine ProDryingRack EX™ (PDREX) – Expandable Heavy-Duty Drying Rack for Oversized Parts

Built to handle big jobs — and adjust to fit any workflow.

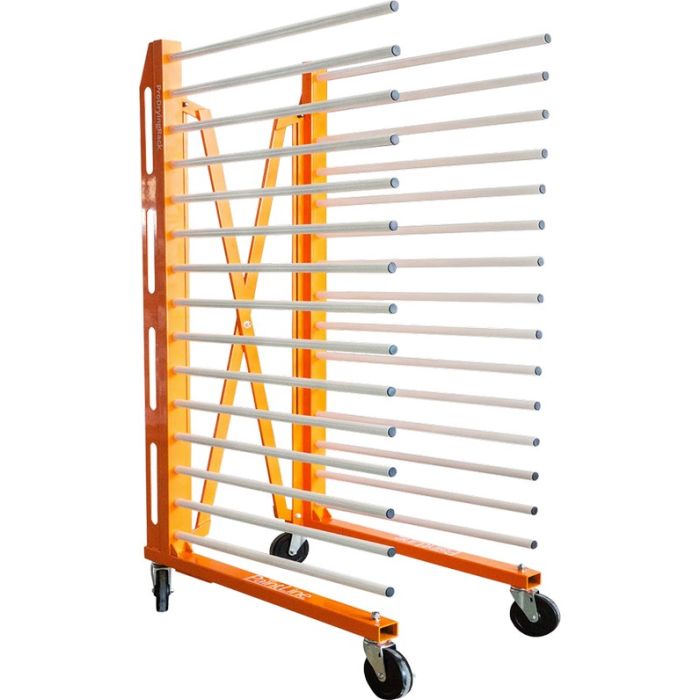

The PaintLine ProDryingRack EX™ (PDREX) is the ultimate solution for drying large, heavy, or oversized parts in high-output woodworking, cabinet, and finishing shops. With its expandable width up to 60 inches, 15 removable levels, and a 900 lb total capacity, this drying rack delivers unmatched versatility and rugged durability — all in one smart, mobile system.

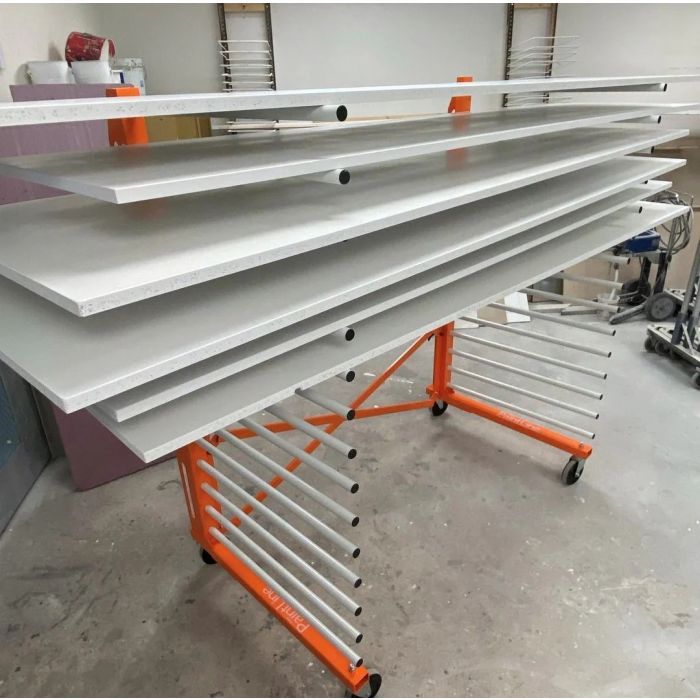

 Whether you're finishing extra-wide cabinet doors, wood panels, shelves, trim, or other large components, the PDREX gives you the space, strength, and flexibility you need to work with confidence.

Expandable Width for Maximum Flexibility

Need more room between the uprights for larger parts? No problem.

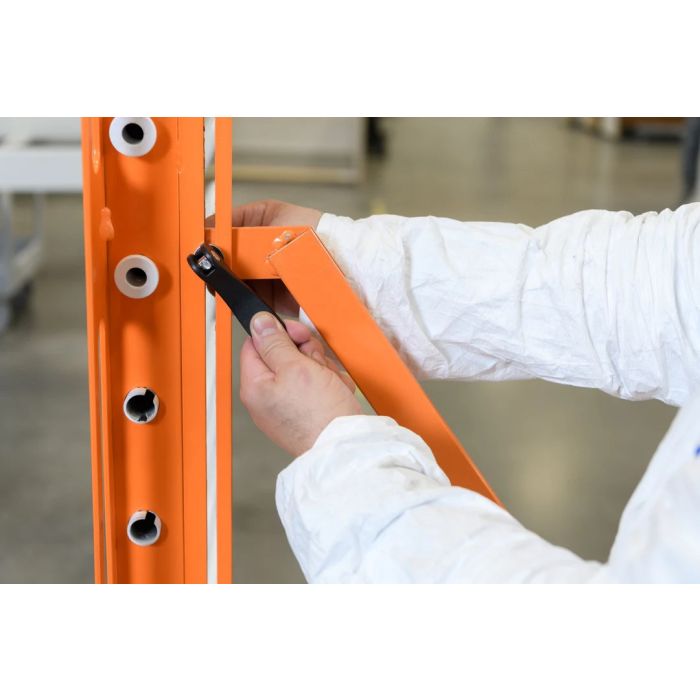

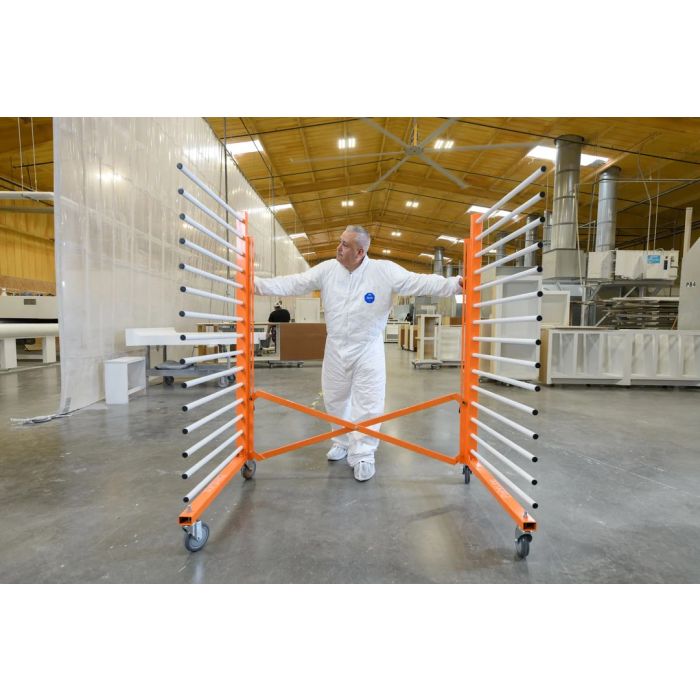

The PDREX’s adjustable frame expands from 20” to nearly 60” wide with the easy-to-use clamp levers located at the rear of the rack. Set the perfect width for your material, lock it in place, and load up with confidence — the sturdy steel frame keeps everything stable, secure, and protected while drying.

Ideal for:

• Oversized cabinet doors and drawer fronts
• Wide panels or trim
• Finished millwork or shelving
• Commercial-scale pieces


Heavy-Duty Capacity You Can Count On

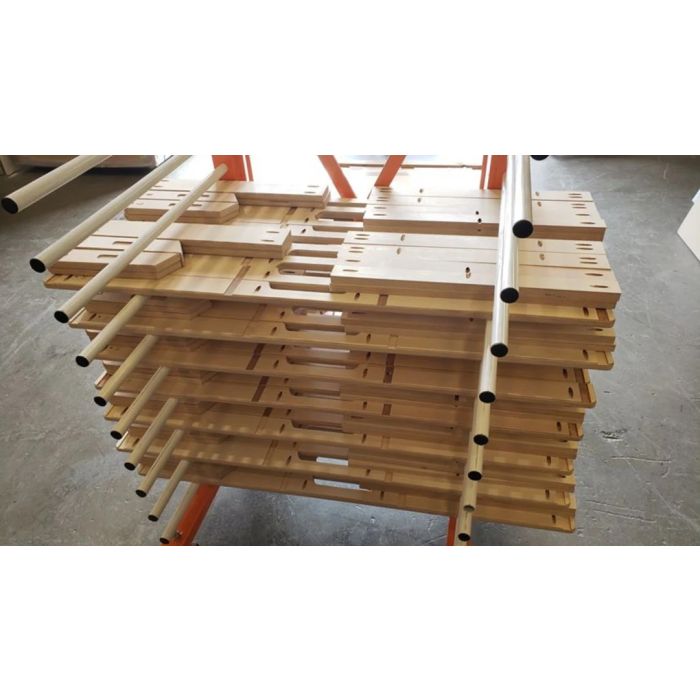

Each of the 15 drying levels supports up to 60 lbs, giving you a total rack capacity of 900 lbs. That’s serious strength for serious projects. Whether you’re working with solid-core doors or large-format custom panels, the PDREX can handle it all.

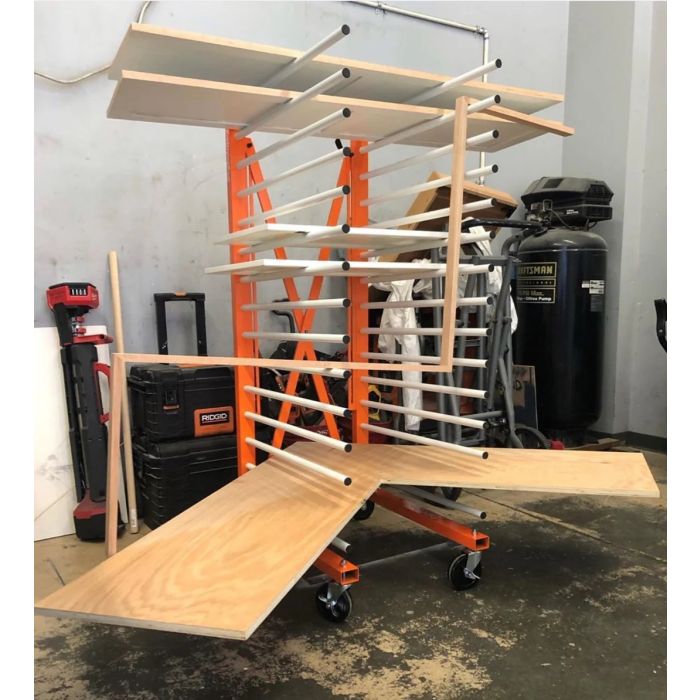

The 30" round steel tubes lock into place with a simple turn — no tools required — and are easy to remove when you need extra clearance between levels. Need more than the standard 3” spacing? Just remove a shelf or two and make room for larger pieces.

Engineered for Real-World Demands

The PDREX is designed from the ground up for long-term, professional use. With its fully gusseted support structure, reinforced bottom plate, and powder-coated steel finish, it’s tough enough for everyday use in busy spray shops, millwork operations, and cabinet production environments.

• All-metal construction resists flexing, warping, and wear
• Powder-coated finish protects against corrosion and overspray
• 1" diameter steel tubes support heavy parts while maintaining airflow
• Reinforced base offers rock-solid stability even under full load


Mobility Without Sacrificing Strength

Need to move the rack between workstations, or into a clean room after finishing? The PDREX is equipped with four heavy-duty casters, including two locking wheels, so you can roll it exactly where you need it — then lock it securely in place.

This combination of mobility and stability makes it perfect for dynamic shop environments where space and flexibility matter.

Quick Setup, Custom Configuration

Assembly is straightforward and requires minimal tools. The drying tubes simply slide into position and twist to lock. Adjust the number of shelves to suit your job — whether you're drying 15 smaller items or fewer oversized components, the PDREX adapts to your workflow.

What’s Included:

• ProDryingRack EX™ Expandable Frame
• 15 Levels of 30” Removable, Locking Steel Tubes
• Clamp Lever Adjustment System
• 4 Casters (2 Locking)
• All-Metal Powder-Coated Construction

Ships in multiple cartons. Tracking information provided. Assembly required.


Key Features at a Glance:

✅ Expands from 20" to 60" Wide – Fits oversized parts with ease
✅ 15 Adjustable Shelf Levels – Custom spacing, removable shelves
✅ 900 lb Total Weight Capacity – 60 lbs per level
✅ Tool-Free Shelf Adjustment – Locking 30” tubes, easy in/out
✅ Clamp Lever Expansion System – Quick adjustments, no struggle
✅ Powder-Coated All-Metal Construction – Built to last
✅ Heavy-Duty Casters (2 Locking) – Mobile and stable
✅ Space-Efficient Footprint – High-capacity storage with small floor space

Perfect For:

• Cabinet makers and woodworkers
• High-volume finishing shops
• Millwork and trim manufacturers
• Commercial painters and refinishers
• Anyone needing a heavy-duty, adjustable drying solution


Take on Bigger Jobs with Confidence

The PaintLine ProDryingRack EX™ is everything you want in a drying rack — strong, spacious, adaptable, and mobile. Whether you're expanding your operation or upgrading from lighter-duty systems, the PDREX is the pro-level choice for shops that demand more from their equipment.

Order the PDREX today and bring powerful, expandable drying capacity to your shop floor.

Need help building a full PaintLine finishing system? We’re here to help you find the right setup for your workflow and space.
