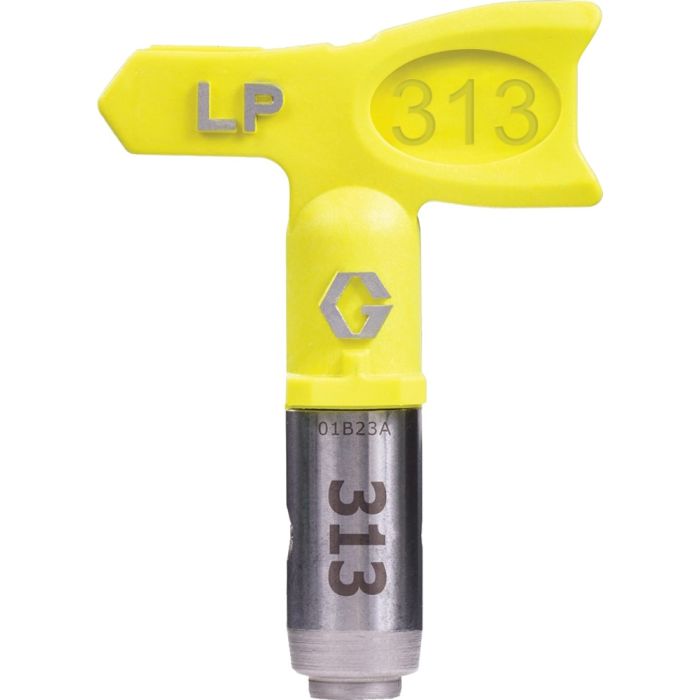

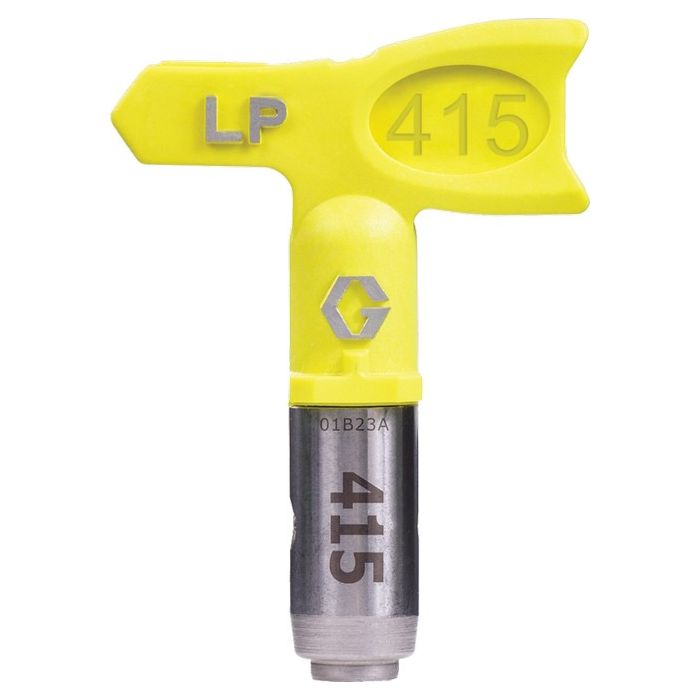

Graco RAC X Low Pressure Switch Tip Airless Spray Gun Tips

Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) Wide Low Pressure (WRLP) RAC X SwitchTip. This low pressure, high production tip produces a 24 - 26 inch fan pattern. Reverse the SwitchTip to easily clear clogs. For all residential, commercial, interior and exterior high volume applications.

• Large Spray Pattern: 24 Inch spray pattern
• More Productivity: Deliver 2X more productivity with less spray passes
• Less Prep & Cleanup Time: Less mess with less overspray. Put the paint where you want it.
• Easiest Pattern Overlap: Softer spray fan pattern. Easy to apply any material to any surface. Consistent blended finish quality.
• Extended Life: Spraying at half pressure doubles tip life. Reduced sprayer maintenance – up to 2X life.
• SmartTip Technology: Exclusive internal tip geometry. Reduces energy required to atomize paints, stains, and other materials. Delivers a superior finish with less pressure. Works with SmartControl on select Graco sprayers.
• Versatility: Works with any airless sprayer. Long lasting fan pattern. High quality finish with a consistent spray pattern.
• Superior Tip Design: Locking tab ensures tip stays securely in guard. Snaps tip in spray or reverse position. OneSeal tip gasket installs with no tools.

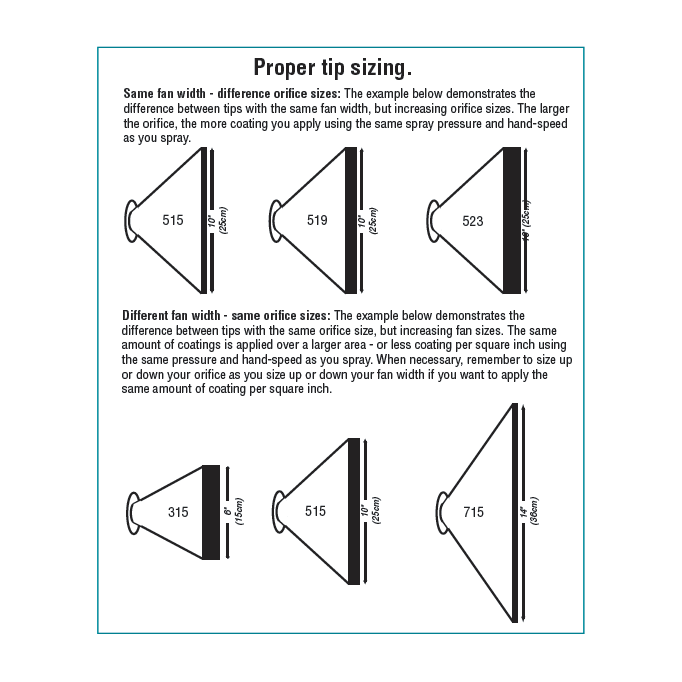

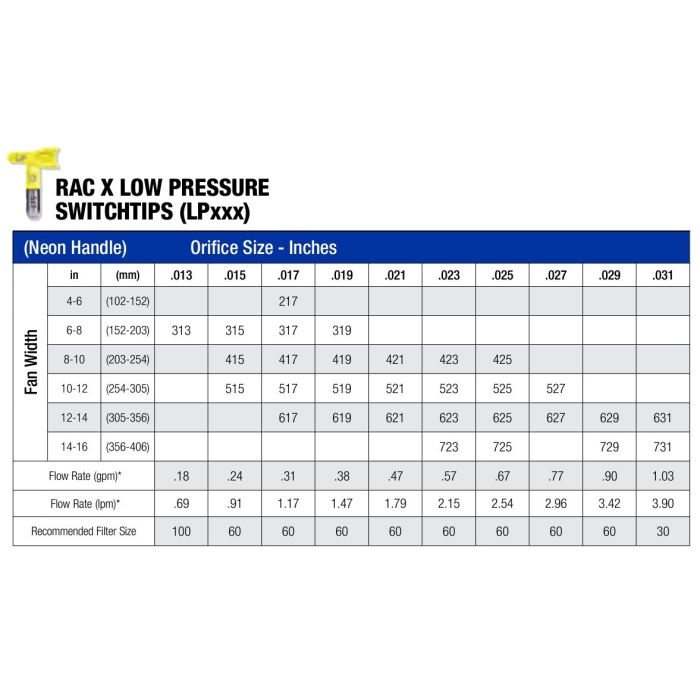

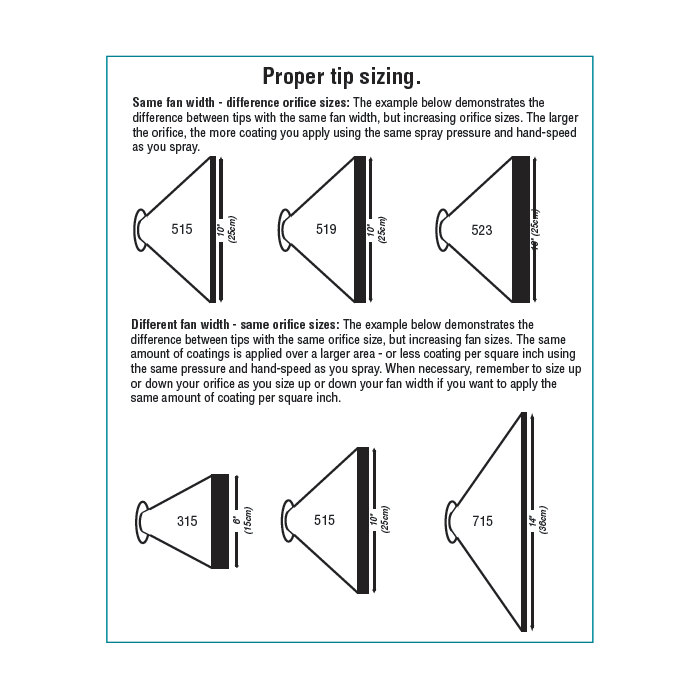

How Tip Sizing Works

• The first number is the fan width or how wide your spray pattern will be
• The second number is the orfice size or how wide the spray tip opening is
• The thicker the material, the larger the orifice size you need
